A BESS is a complete battery system for storing energy from renewable sources (like solar or wind) or the grid for later use, providing backup power, load shifting, and grid support.
I am item content. Click edit A typical BESS includes batteries, a battery management system (BMS), an inverter, and a monitoring/control system.
We use only the safest LiFePo4 chemical battery for our batteries
From 10-15 years depending on using method
A BESS is made of many battery cells linked in series. The weakest cell sets the limit for the system’s total lifespan. The claimed 6000-cycle life comes from lab tests under controlled conditions. In real-world use, results may vary due to environment and operating patterns.
A BESS is made up of many battery cells linked in series. The weakest cell controls the system’s overall performance and lifespan. If one cell degrades faster, the whole system loses efficiency and life. This is why proper cell balancing and constant monitoring are critical.

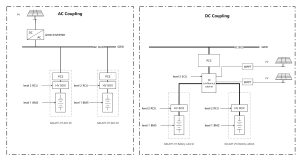

Battery cabinets usually use two coupling methods: AC coupling and DC coupling.
AC coupling connects in parallel through the PCS AC terminal. It is simple to operate, cost-saving, and easy to maintain. It also allows later expansion of battery capacity.
DC coupling is more efficient. However, it changes the system from a two-level to a three-level structure, which increases cost. It is mainly used in pure off-grid systems without grid access.
The typical usage depth of energy storage systems is around 90%, not 100%. This limit exists for several key reasons.
Battery lifespan: Batteries degrade after many charge-discharge cycles. Avoiding full discharge extends their lifespan and keeps efficiency stable.
Safety: Fully discharging batteries can damage cells and increase risks like thermal runaway. Keeping a charge margin improves safety.
Performance: Battery efficiency drops near full charge or full discharge. Limiting depth of discharge helps maintain higher efficiency.
Flexibility: A reserve capacity provides a buffer. It allows the system to handle sudden demand spikes or variable renewable generation.
In short, limiting depth of discharge is a trade-off. It protects battery life, ensures safety, maintains efficiency, and supports system flexibility.
In an energy storage system, “STS” refers to a Static Transfer Switch.
A Static Transfer Switch (STS) is an electrical device that enables seamless switching between two power sources. In energy storage systems, it connects the storage system to the grid or other power equipment.
Energy storage systems can charge or discharge, storing or supplying electrical energy. The STS allows fast and automatic switching between the system and the grid.
When charging, the STS connects the storage system to the grid, letting energy flow in. When discharging, it switches to allow energy flow out.
This bi-directional switching enables flexible charge and discharge operations. It also ensures uninterrupted power exchange and stable electricity supply.
In short, the STS allows seamless switching between the energy storage system and the grid, supporting bi-directional energy flow.
STS (Static Transfer Switch) is a device used for seamless switching between two power sources. It typically connects energy storage systems to the grid or other power equipment. STS allows two-way energy flow and has fast response and high reliability, ensuring uninterrupted power supply.
ATS (Automatic Transfer Switch) is an automatic switching device for power systems. It switches between the main power source and a backup source. ATS is used in buildings, data centers, and critical equipment. It senses main power failure and automatically switches to maintain continuous power.
Switching speed: STS operates in milliseconds, suitable for energy storage and fast energy flow applications. ATS is slower, taking several seconds, suitable for general backup power switching.
Application scenarios: STS is mainly for energy storage or bidirectional energy flow, enabling seamless switching with the grid. ATS switches from main power to backup during main power failure to maintain continuity.
Functions: STS enables fast, seamless switching and bidirectional energy flow. ATS ensures automatic switching to backup power during main source failure.
Summary: The main difference between STS and ATS is switching speed. STS is fast, ideal for energy storage systems. ATS is slower and used for general backup power switching to maintain continuous supply.
There are two ways to connect: AC end access or DC end access.
If an existing PV system has a grid-connected inverter, AC coupling is usually used. It connects the energy storage system to the AC busbar.
If the customer uses a DC-DC module instead of a grid-connected inverter, DC coupling is required.
The secondary architecture of a battery cabinet refers to the BMS protection level. It corresponds to the first-level BMS of each battery pack.
The first level collects data and executes instructions for the single battery pack. It monitors cell temperature, voltage, and capacity, and manages charging and discharging.
The second level is the RCU (Battery Cluster Master Management Unit) in the high-voltage box. It collects data from all packs in a cluster and sends instructions to each BMS.
The three-level architecture includes the SCU (System Control Unit), usually used in DC coupling projects. The SCU sends instructions to all RCUs and controls all battery clusters.
51.2V is the battery voltage. This value does not determine if a battery is high-voltage or low-voltage.
The key difference is the connection method.
Low-voltage batteries are connected in parallel. This increases the current but keeps the voltage the same.
High-voltage batteries are connected in series. This increases the voltage without changing the current.
Three-phase three-wire (3P3W) system: This system has three phases and three wires, without a neutral wire. It is used in some special industrial applications where single-phase power is not needed. In a 3P3W system, three-phase 400V power is available, but 220V single-phase power cannot be obtained directly. When disconnected from the grid, an isolation transformer is usually required.
Three-phase four-wire (3P4W) system: This system has three phases, three wires, and a neutral wire. The neutral connects the system’s neutral point and allows voltage measurement and control. 3P4W systems are used in commercial and residential buildings or applications needing both three-phase and single-phase power. By connecting the neutral to any phase, three-phase 400V or single-phase 220V power can be obtained.
Summary: A 3P3W system provides only 400V three-phase power. A 3P4W system provides 400V three-phase and 220V single-phase power. The choice depends on application requirements.
Lithium iron phosphate (LiFePO4) batteries offer several advantages over traditional lead-acid batteries.
Higher energy density: LiFePO4 batteries store more energy in a smaller and lighter package. They are ideal for applications with limited space and weight.
Longer cycle life: LiFePO4 batteries endure more charge-discharge cycles without significant capacity loss. This makes them durable and cost-effective.
Faster charging: LiFePO4 batteries accept charge quickly, reducing charging time and improving overall system efficiency.
Lightweight and compact: These batteries are easier to handle and install, especially in portable devices or electric vehicles.
Higher discharge rate: LiFePO4 batteries deliver high currents without major voltage drops, suitable for high-power or rapid-energy applications.
Maintenance-free: Unlike lead-acid batteries, LiFePO4 batteries do not require water topping or equalization charging, reducing maintenance costs.
Environmentally friendly: LiFePO4 batteries are non-toxic, have lower environmental impact, and are easier to recycle.
Summary: The choice of battery depends on application, cost, and infrastructure. LiFePO4 batteries offer many advantages, but lead-acid may still be preferred for lower upfront cost or compatibility.
Lithium iron phosphate (LiFePO4) batteries are commonly used for energy storage. They offer several advantages over ternary lithium batteries.
Safety: LiFePO4 batteries have higher thermal and chemical stability. They are less prone to thermal runaway, making them safer for energy storage systems.
Cycle life: LiFePO4 batteries endure more charge-discharge cycles without significant degradation. This makes them durable and reliable for long-term energy storage.
High discharge rates: These batteries can deliver high currents without significant capacity loss. They are suitable for applications requiring high power, such as EVs or renewable energy systems.
Wide operating temperature range: LiFePO4 batteries perform reliably in hot and cold environments. They are suitable for various climate conditions.
Cost: LiFePO4 batteries are generally less expensive than ternary lithium batteries. They are cost-effective when energy density is not the main concern.
Summary: Battery choice depends on application priorities. Ternary lithium batteries may be preferred when higher energy density is critical, such as in electric vehicles.
Quality and Reliability
Brand-new A-grade batteries meet strict quality standards and undergo rigorous testing. They have fewer defects and higher reliability.
Performance Consistency
A-grade batteries deliver stable and predictable performance. Their cell capacities and voltage characteristics are well-balanced, ensuring consistent power output.
Longevity
A-grade batteries have longer lifespans than used or lower-grade batteries. They can endure more charge-discharge cycles before degrading.
Warranty and Support
New A-grade batteries often come with manufacturer warranties. This guarantees performance and provides access to technical support if needed.
Safety
Used or lower-grade batteries carry higher risks, such as internal shorts or thermal runaway. A-grade batteries use modern safety standards, reducing these hazards.
The service life of lithium batteries can be influenced by several factors:
1. Depth of Discharge (DOD): The depth to which a lithium battery is discharged during each cycle affects its service life. Generally, shallower discharges result in longer battery life. For example, if a battery is consistently discharged to only 20% of its capacity (80% state of charge) instead of 50% (50% state of charge), it can help prolong the overall service life.
2. Charge Rate: The rate at which a lithium battery is charged can impact its service life. Charging at a slower rate is generally better for battery longevity. Rapid charging or high charge currents generate more heat, which can degrade the battery’s performance and shorten its service life.
3. Operating Temperature: High temperatures can accelerate the degradation of lithium batteries, while low temperatures can reduce their performance. Operating within the recommended temperature range specified by the manufacturer can help optimize the battery life. Extreme temperatures should be avoided, as they can cause irreversible damage to the battery.
4. Cycling: The number of charge-discharge cycles a lithium battery undergoes can affect its service life. Lithium batteries have a limited number of cycles before their capacity starts to degrade. Shallower discharge cycles and avoiding full charge-discharge cycles can help prolong the battery’s life.
5. Storage Conditions: If a lithium battery is not being used, proper storage conditions are crucial for maintaining its longevity. Storing the battery at a partial state of charge (around 40-60% state of charge) and in a cool and dry environment can help slow down the degradation process.
6. Quality and Manufacturing: The quality of the lithium battery and its manufacturing process can significantly impact its service life. Batteries from reputable manufacturers that adhere to strict quality controls and use high-quality materials tend to have better longevity.
7. Usage Patterns: The specific usage patterns and application requirements can influence the service life of lithium batteries. Heavy or continuous usage, high discharge rates, and extreme operating conditions can put more stress on the battery and reduce its overall lifespan.
It’s important to note that while these factors can influence the service life of lithium batteries, the actual lifespan can vary depending on the specific battery chemistry, design, and usage conditions. It’s recommended to follow the manufacturer’s guidelines and best practices for optimal battery performance and longevity.
1.FCR-aFFR
2.Dynamic Capacity Enhancement of Transformers
3.Microgrid Power Back-up
4.Off-Grid Power Systems
5.Arbitrage for renwable energy
6.Renewable Energy Self-Consumption
7.Industry Peak-Valley Arbitrag
FCR Frequency Containment Reserve
FCR is an essential service in the power grid designed to maintain system stability by automatically responding to frequency deviations. It acts as the first line of defense when the balance between electricity supply and demand is disturbed, such as during a sudden loss of power generation or a spike in demand.
FCR is activated within seconds and functions to contain frequency fluctuations, keeping the grid frequency within safe operational limits (typically around 50 Hz or 60 Hz). It does this by automatically adjusting the power output of generating units or the consumption of large-scale loads, based on the magnitude of the frequency deviation. This immediate response helps to prevent dangerous grid instability, which could lead to blackouts or other grid failures.
FCR typically operates over short periods, ensuring that the system stays within the required frequency range until slower-responding reserves, like Automatic Frequency Restoration Reserve (aFRR), can take over and fully restore the balance.
The service is provided by both traditional power plants and newer technologies like batteries and other flexible energy resources, contributing to the overall resilience and reliability of the power system.
https://ffdpowergermany.de/bess-for-fcr-affr/
Extending Asset Life and Maximizing Revenue with Dynamic Transformer Capacity Enhancement
Transformers are essential in power distribution. They adjust voltage levels to ensure efficient electricity transmission.
As electricity demand grows, transformers may operate near or beyond rated capacities. This causes overheating, efficiency loss, and shorter lifespan.
Installing new transformers is costly and time-consuming. Enhancing the dynamic capacity of existing transformers is a cost-effective alternative.
Dynamic Capacity Enhancement Strategy
A Battery Energy Storage System (BESS) charges when transformer load is low. This usually corresponds to lower electricity prices.
During high-load conditions, the BESS discharges to support the transformer. This reduces stress on the equipment and improves reliability.
The BESS strategy also allows peak-valley price arbitrage. Charging at low prices and discharging at high prices generates additional revenue.
Dynamic capacity enhancement extends transformer life, maintains efficiency, and provides economic benefits through energy management.
https://ffdpowergermany.de/bess-for-transformer-enhancement/
In many regions, access to a reliable and sufficient electricity supply is a challenge, whether due to underdeveloped infrastructure, remote locations, or increasing demand that outpaces supply. Microgrid systems provide a solution for businesses, industries, and communities that need to ensure continuous power availability. By integrating local generation sources such as solar, wind, diesel generator and energy storage systems, microgrids can offer a stable and sufficient electricity supply, independent of or supplementing the main grid.
By seamlessly transitioning between different power sources, microgrids can minimize the impact of power outages. When the main grid fails, the microgrid automatically switches to local generation and storage, ensuring that critical operations continue without interruption. This capability not only prevents production downtime and financial losses but also safeguards sensitive equipment from damage due to sudden power loss. For businesses in regions prone to grid instability, implementing a microgrid system can be a crucial step toward maintaining operational continuity and protecting revenue.
Off-grid power solutions offer a sustainable pathway to energy independence by enabling users in remote or underserved areas to generate, store, and manage their own electricity without relying on traditional utility grids. These systems, often powered by renewable energy sources like solar and wind, paired with battery energy storage systems (BESS), provide reliable and continuous power even in challenging environments. By reducing dependency on fuel-based generators and minimizing exposure to grid outages, off-grid solutions empower users to maintain consistent operations, regardless of external disruptions.
Operational efficiency is a key factor in the success of off-grid systems. Efficient energy management ensures that the power generated from renewables is maximized, storage is optimized, and loads are properly balanced. This reduces energy waste, minimizes costs, and extends the lifespan of system components such as batteries and inverters. With advanced energy management systems (EMS) in place, off-grid power solutions not only offer autonomy but also significantly improve overall system performance, ensuring long-term sustainability and cost-effectiveness for both residential and industrial users.
https://ffdpowergermany.de/bess-for-offgrid/
In most countries, energy generated from renewable sources like solar and wind is subject to peak and valley pricing when selling to the grid. By strategically selling this energy during peak pricing periods, you can significantly boost your financial returns. During low-price periods, storing energy in a Battery Energy Storage System (BESS) allows you to reserve it for more profitable times, ensuring maximum earnings.
Additionally, in some regions, grid stability regulations now restrict selling renewable energy to the grid during certain hours, such as midday. As a result, BESS is becoming an indispensable component for renewable energy businesses, providing the flexibility to store and sell energy when it’s most advantageous.
As photovoltaic (PV) costs continue to fall, solar adoption is increasing worldwide. Many areas now face grid restrictions on exporting electricity.
This trend encourages self-consumption, where homeowners and businesses use solar energy directly on-site. Self-consumption increases energy independence and reduces electricity costs.
Producing and consuming solar power on-site maximizes investment value. It also reduces reliance on fluctuating grid energy prices.
To fully benefit from self-consumption, integrating a Battery Energy Storage System (BESS) is essential. Solar power is intermittent, as sunlight varies daily and with weather conditions.
A BESS stores excess energy generated during peak sunlight hours. It then supplies energy during cloudy periods or peak demand times.
This approach stabilizes your power supply and ensures that no solar energy is wasted. It reduces the need to export excess energy to the grid.
With a BESS, solar installations become more efficient and sustainable. Users can maximize energy use, costs savings, and overall system value.
n today’s dynamic energy market, managing costs is more critical than ever for factories and industrial facilities. One of the most effective strategies for reducing energy expenses is leveraging energy arbitrage—a method where you take advantage of the price differences between peak and valley periods when buying power from the grid. By strategically charging batteries during low-cost valley periods and discharging them during high-cost peak periods, factories can significantly reduce their overall energy costs while ensuring a steady and reliable power supply.
Distributed energy storage systems offer multiple advantages and features, making them important for modern energy management.
Advantages:
1. Reduce transmission losses
Located near end-users, distributed storage reduces energy loss from long-distance transmission and improves efficiency.
2. Support renewable energy
Integrated with solar or wind systems, they balance supply and demand, maximizing green energy utilization.
3. Enhance power reliability
Provide backup power during outages, ensuring continuous electricity supply and improving reliability.
4. Flexible capacity
Systems can be scaled up gradually to meet growing energy needs.
5. Cost-effectiveness
Store energy during low-price periods and discharge during peak times to reduce electricity bills.
6. Participate in demand response
Charge and discharge based on grid demand or electricity price changes to balance the load.
7. Reduce carbon emissions
Using renewable energy and storage helps lower carbon footprints and supports sustainability.
Features:
1. Small scale and modular
Compact, easy to install, maintain, and expand modularly based on user needs.
2. Intelligent management
Equipped with monitoring and management systems for remote control, data analysis, and optimized scheduling.
3. Diversified technologies
Supports lithium-ion, lead-acid, flywheel, and other energy storage types for different applications.
4. Interaction with the local grid
Enhances flexibility and stability of microgrids through intelligent grid interaction.
5. User autonomy
Users can choose system size and configuration based on energy needs and budget.
6. Environmental adaptability
Suitable for various environments, including residential, commercial, and industrial applications.
Summary
Distributed energy storage systems provide technical flexibility, economic benefits, and environmental sustainability. They are a key component of future energy systems.
Centralized energy storage systems are ideal for large-scale power management and grid support. They offer several advantages and features.
Advantages:
1. High energy capacity
These systems store large amounts of energy, suitable for meeting high power demands in grids or large users.
2. Economic benefits
Large-scale construction reduces costs per unit of energy storage, improving return on investment.
3. Grid support
They provide frequency regulation, load balancing, and emergency power, enhancing grid stability and reliability.
4. Load forecasting and management
Centralized storage balances supply and demand, optimizes load, and improves grid operational efficiency.
5. Multifunctionality
They store excess renewable energy or peaking power, increasing the flexibility of the power system.
6. Environmental benefits
Combined with renewable energy, they reduce fossil fuel use and lower carbon emissions.
Features:
1. Large scale
Centralized systems are typically deployed at specific locations for large-scale energy management.
2. Efficient energy conversion
Technologies like pumped hydro, lithium-ion batteries, and compressed air storage offer high conversion efficiency.
3. Centralized management
Easier monitoring, lower operational costs, and efficient maintenance and fault diagnosis.
4. Flexible scheduling
Systems can be dynamically dispatched in real-time to provide fast-response power services.
5. Long-term stability
Large-scale design ensures high stability and reliability for continuous service.
6. Wide applicability
Suitable for grid dispatch, peak and valley regulation, and standby power supply.
Summary
Centralized energy storage systems combine large capacity, high efficiency, and flexible dispatch. They support stable and economic power system operation. With the global transition to renewable energy, their role will become increasingly important.
In energy storage systems, liquid cooling is widely used to manage battery and electronic component temperatures.
Advantages:
1. Efficient thermal management
Liquid cooling transfers and dissipates heat quickly, maintaining lower temperatures and improving performance.
2. Better temperature uniformity
It provides uniform temperature across the battery pack, preventing local overheating and extending battery life.
3. Improved energy density
Effective heat dissipation allows compact battery design, increasing energy density and reducing system size and weight.
4. Noise reduction
Liquid cooling produces less noise than air cooling, suitable for noise-sensitive applications.
5. Extended battery life
Maintaining optimal temperature prolongs battery cycle life and overall performance.
Disadvantages:
1. Complexity
Liquid cooling systems involve pumps, radiators, and pipes, increasing design and installation complexity.
2. Cost
Higher initial investment for materials, components, and installation may not suit limited budgets.
3. Leakage risk
Leaks can damage batteries and electronic components, posing safety risks.
4. Maintenance requirements
Regular checks of pumps and coolant are needed, increasing maintenance workload.
5. Environmental considerations
Extreme temperatures may affect coolant performance, limiting effectiveness in very hot or cold environments.
Conclusion
Liquid cooling offers efficient, uniform thermal management, ideal for high-performance batteries. However, system complexity, cost, maintenance, and environmental factors must be considered. Applications should be evaluated for specific needs, budget, and conditions before selecting liquid cooling.
Aerosol fire protection,
heptafluoropropane fire protection system,
perfluorohexanone fire protection system.
Requirements will vary from country to country depending on the size of the energy storage system.
In industrial and commercial energy storage systems, high-voltage systems are preferred over low-voltage systems for several reasons.
1. Energy density
Volume and weight: High-voltage systems store more energy in a smaller size and lighter package, saving space.
Equipment size: Fewer and smaller devices are needed, reducing installation footprint.
2. Efficiency
Reduced transmission loss: High voltage lowers current, decreasing wire energy loss and heat loss.
Charging/discharging efficiency: High-voltage systems improve efficiency, especially in large storage setups.
3. Cost-effectiveness
Reduced wire and component costs: Smaller current allows smaller wires and transformers, saving materials and money.
Optimized system configuration: High-voltage systems integrate better with existing grids, improving economic efficiency.
4. Flexibility and compatibility
Grid compatibility: High-voltage systems easily integrate with high-voltage grids, reducing transformer needs.
Multi-purpose use: They can support peak load reduction, frequency regulation, and standby power.
5. Safety
Lower current risks: High-voltage systems have lower current at the same power, reducing overheating and short-circuit risks.
6. Technical maturity
High-voltage systems are technologically mature. Industry standards and best practices reduce technical risks.
Conclusion
Industrial and commercial systems often use high-voltage storage for better energy density, efficiency, cost-effectiveness, flexibility, and safety. While initial costs are higher, long-term performance and economic benefits usually outweigh them.
1. Lithium Battery Modules
Battery cells: Multiple lithium-ion cells arranged modularly for easy expansion and replacement.
2. Battery Management System (BMS)
Monitoring: Continuously monitors voltage, temperature, and status of each cell.
Equalization: Ensures all cells charge and discharge evenly.
Safety protection: Prevents overcharging, undercharging, short-circuiting, and overheating to extend battery life.
3. PCS (Power Conversion System)
DC to AC conversion: Converts DC power to AC for grid or load connection.
Control function: Manages charging and discharging to optimize energy use.
4. Cooling System
Cooling mechanism: Uses air or liquid cooling to maintain optimal battery temperature and extend lifespan.
5. Energy Management System (EMS)
Energy flow management: Controls charging/discharging strategies, load scheduling, and grid interaction.
Data recording: Logs system operation for analysis and maintenance.
6. Connection and Distribution Equipment
Cables and connectors: Ensure stable power transmission between components.
Switchboard: Manages current distribution for safe operation.
7. Monitoring and Communication Modules
Remote monitoring: Allows users to monitor system status and manage data remotely.
Intelligent scheduling: Optimizes operation based on grid state and user needs.
8. Protection Devices
Fuses and circuit breakers: Prevent overloading and short circuits to ensure safety.
9. Enclosures and Racks
Structural support: Provides physical stability and protection.
Protective design: Shields internal components from dust and water.
10. Power Supply and Charging Equipment
Supplies energy for charging and supports system operation.
Conclusion
Lithium-ion energy storage systems are designed for safety, efficiency, and maintainability. All components work together for optimal energy management. System configuration depends on specific application needs.
Determining the right commercial energy storage system requires understanding key factors. This ensures accurate power and capacity selection.
1. Load analysis
Load types: Identify equipment needing power, such as lighting, air conditioning, motors, and computers.
Power requirements: Record each device’s power in kilowatts (kW) or kilowatt-hours (kWh), then calculate total demand.
Peak load: Determine the highest power demand, often during equipment startup.
2. Electricity usage patterns
Daily usage: Calculate total daily electricity consumption in kWh.
Peak hours: Identify when equipment is used most to find peak and off-peak periods.
Seasonal changes: Consider seasonal impacts on electricity demand, especially for heating and cooling.
3. System objectives
Purpose: Define the system’s main goals, such as backup power, load shifting, demand response, or renewable energy integration.
Economic benefits: Evaluate whether the system will reduce electricity costs or improve efficiency.
4. Charging and discharging requirements
Charging time: Determine when and how much power is needed, e.g., low-priced nighttime hours.
Discharging time: Specify desired discharge periods and duration, e.g., during peak usage.
5. System efficiency
Efficiency loss: Understand the charge-discharge efficiency, typically 80%-95%.
Heat loss: Include heat and other losses in system design.
6. Safety and regulatory requirements
Local regulations: Ensure compliance with safety standards and local policies.
Insurance: Consider energy storage system requirements from insurance providers.
7. Future scalability
Plan for potential system expansion to meet future energy needs or load increases.
Even after installation, an energy storage system requires regular maintenance for safe, efficient, and long-lasting operation.
1. Regular inspections
Visual inspection: Check for visible damage, leaks, or corrosion.
Connections: Ensure cables and connectors are tight to avoid power loss or short circuits.
2. Battery Management System (BMS) monitoring
State monitoring: Use BMS to monitor voltage, temperature, and charge/discharge status in real-time.
Equalization charging: Perform regular equalization charging to keep all cells balanced and extend battery life.
3. Cleaning and maintenance
Equipment cleaning: Clean the system and surrounding area to prevent dust or dirt accumulation.
Cooling system: Maintain good ventilation and cleanliness to prevent overheating.
4. Software updates
Regularly check and update firmware and software to get new features and safety fixes.
5. Performance evaluation
Energy efficiency: Evaluate system efficiency regularly to ensure expected performance.
Data analysis: Record and analyze operating data to identify issues or optimize strategies.
6. Safety inspections
Battery safety: Check for overcharging, undercharging, or overheating.
Emergency plans: Ensure fire alarms, extinguishers, and emergency procedures are in place.
7. Professional maintenance
Professional inspections: Have technicians inspect and maintain the system as recommended.
Maintenance contract: Consider a professional contract to ensure long-term stable operation.
8. Record maintenance
Keep a log of all maintenance activities, inspection results, and replaced parts to track system history.
In energy storage systems, “0.5C” and “1C” refer to a battery’s charge or discharge rate relative to its capacity.
C rate definition: The “C” stands for capacity, usually measured in ampere-hours (Ah). It indicates how fast the battery charges or discharges compared to its total capacity.
1C rate: For a 100 Ah battery, a 1C rate means charging or discharging at 100 amps. At this rate, the battery is fully charged or discharged in one hour.
0.5C rate: For the same 100 Ah battery, a 0.5C rate means charging or discharging at 50 amps. This takes two hours to fully charge or discharge.
Summary:
0.5C: 50% of total capacity; full charge or discharge in 2 hours.
1C: 100% of total capacity; full charge or discharge in 1 hour.
Importance of C rates:
Battery management: Ensures safe operation and prolongs battery life.
System design: Determines how quickly energy can be drawn or supplied based on operational needs.
Over-discharging lithium-ion energy storage batteries can cause several risks. These risks include capacity loss, safety hazards, and reduced lifespan.
1. Capacity loss
Multiple deep discharges can cause a permanent decrease in battery capacity, reducing available energy.
2. Voltage drop
Deep discharge may cause individual cell voltages to fall below safe limits, potentially leading to voltage collapse.
3. Lithium metal precipitation
Lithium may precipitate on the negative electrode, decreasing capacity, increasing internal resistance, and raising safety risks.
4. Internal short circuit
Deep discharge can decompose the electrolyte, increasing internal short-circuit risk and potential thermal runaway.
5. Increased internal resistance
Internal resistance rises, reducing charging and discharging efficiency and overall battery performance.
6. Thermal problems
Over-discharging can cause heating, which in extreme cases may lead to thermal runaway.
7. Battery swelling or leakage
Abnormal chemical reactions may cause swelling or leakage, further compromising safety.
8. Battery balancing issues
Uneven discharge among cells can occur, affecting performance and safety.
9. Shortened service life
Long-term deep discharge accelerates aging, leading to more frequent battery replacements.
10. Safety hazards
Extreme over-discharging may result in fire or explosion.
Preventive measures
Battery Management System (BMS): Monitors voltage in real-time and disconnects loads at set thresholds.
Regular monitoring: Check voltage and capacity periodically.
User education: Teach users to avoid deep discharge and follow battery guidelines.
Conclusion
Over-discharging lithium-ion batteries risks capacity loss, reduced efficiency, safety hazards, and shorter service life. Proper monitoring and management are essential for safe operation.
The self-discharge of the battery cell is 3%, and the entire system is 6%. Different battery cells may have different self-consumption power.The entire system is an increase of 3% on the basis of the battery cell.
Using a diesel generator in an off-grid system is not always necessary. Its inclusion depends on system design, energy needs, and available resources.
1. Energy reliability
Backup power: Diesel generators provide reliable backup when solar or wind power is insufficient, especially during low light or weak wind.
Load demand: For high or fluctuating power demand, diesel generators meet peak loads better than renewables alone.
Battery storage limitations: Generators can supplement insufficient battery storage to ensure continuous power supply.
2. Fuel supply
Fuel availability: Diesel generators are practical if fuel is accessible and reasonably priced. Remote areas with uncertain fuel supply may face challenges.
3. Environmental factors
Carbon footprint: Diesel generators emit greenhouse gases. Fully renewable systems may be preferred for lower environmental impact.
4. Cost
Investment and operation: Renewable systems may have higher upfront costs but lower long-term operating costs than diesel generators, which require fuel and maintenance.
5. Hybrid systems
Many off-grid systems combine diesel generators with renewable energy. This balances reliability and sustainability.
6. Regulatory and permitting issues
Some regions have emissions and noise regulations affecting diesel generator use.
Alternatives to diesel generators
Battery storage: Large-capacity batteries can provide energy independence without diesel.
Renewable energy: Solar, wind, or hydroelectric power can meet energy needs alone or with storage.
Biofuel generators: Biofuel generators offer similar benefits with lower environmental impact.
Conclusion
Diesel generators enhance reliability and flexibility in off-grid systems, but they are not the only solution. Energy needs, resources, environmental impact, and regulations should guide the decision.
